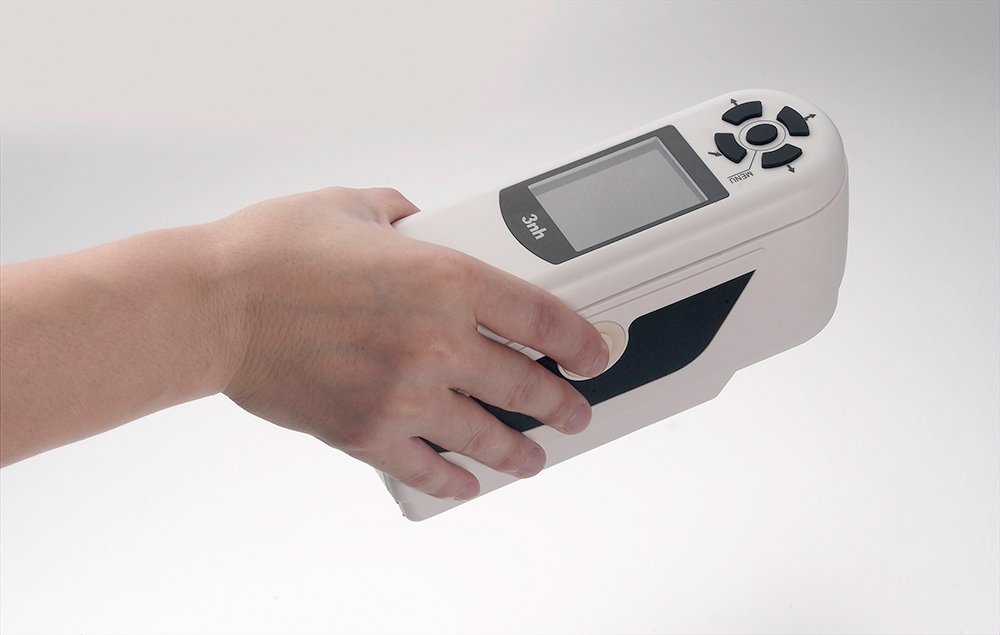

NH300 Portable Colorimeter

NH300 colorimeter is the most convenient colorimeter which is attractive in price and quality. It is widely used in R&D, quality control and production management departments. 3nh colorimeter has the ability to measure color difference accurately and quickly. It is equipped with quality management software which can measure color difference easily and accurately. Meanwhile, it can connect with computer and realize more functions.

Product Features

1. Leading Humanity Design and Convenient Operation

● Auto White and Black Calibration at Startup
● Structure Design in line with Ergonomics
● Easy-to-use Operation Interface
2. Stable Measurement Performance

● The average fluctuation of △E is less than 0.07, actually more in 0.03~0.06.

● Portable structure design which is more conductive to keeping the instrument stable when using.
3. Convenient and Fast Locating

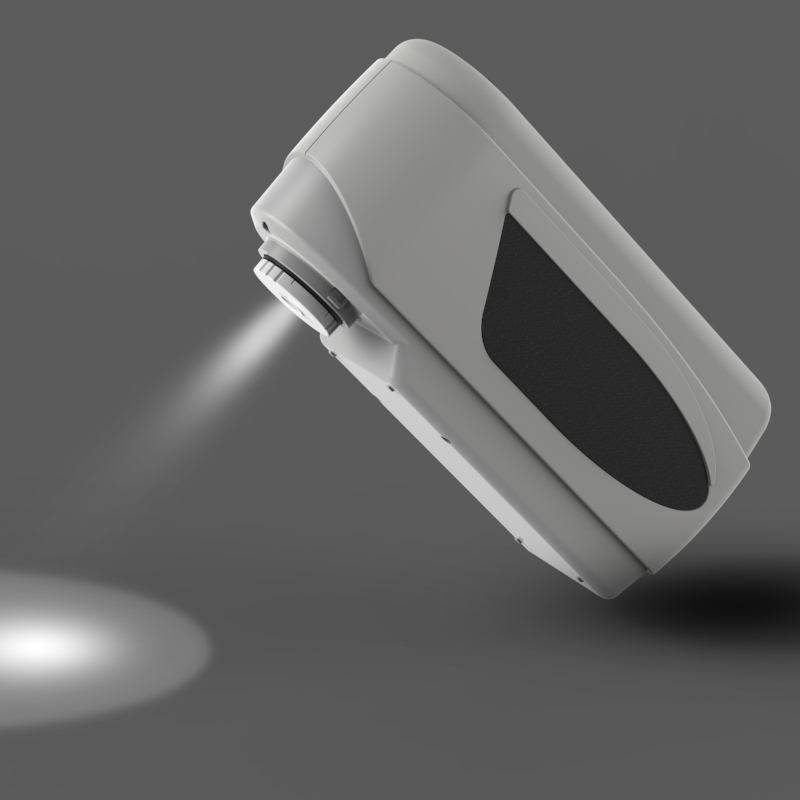

● Illumination locating is a fast, simple and convenient locating function which is the original function by 3nh.

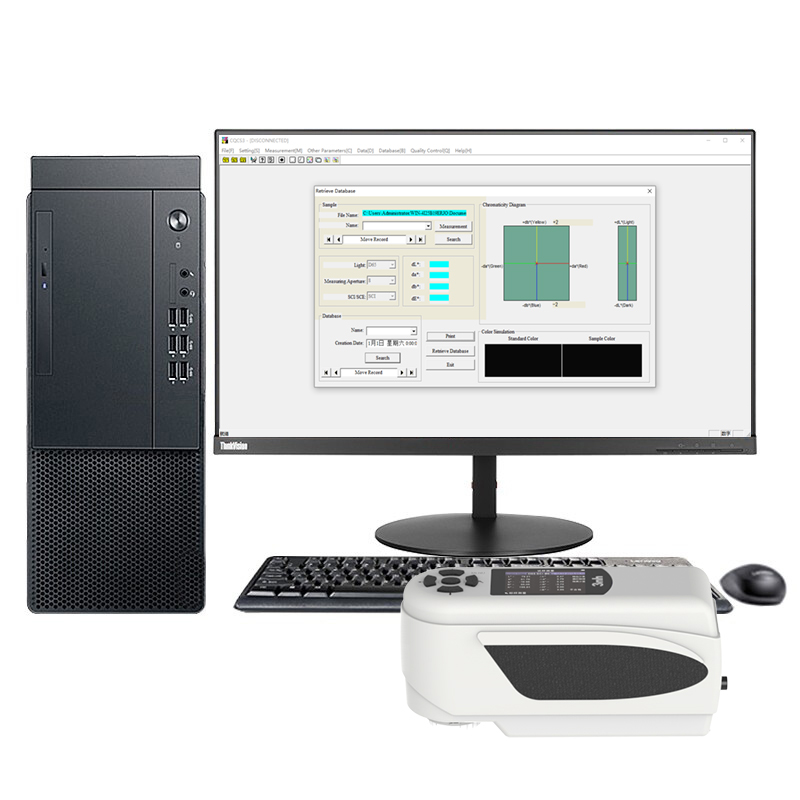

4. PC Software—Realize More Function Expansion
● 3nh has the intellectual property of PC software. The corresponding software serial number and
● password protection are configured in 3nh colorimeter.

● Be able to perform color difference analysis, color difference cumulative analysis, chromaticity index, color sample database management, simulating object color, etc.

5. Advanced Power Management Design
● 3nh is the first enterprise using high capacity Li-ion battery in colorimeter.
● 3nh Li-ion battery can be repeatedly charged which will save cost. Meanwhile, it can measure more than
● 3000 times on one charge to ensure the stability of long time measurement.

Applications:

3nh colorimeter spectrophotometer is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic industries, scientific research institutes, schools and laboratories. It not only can help to perform color matching and color management studies, but also can control product quality management. 3nh colorimeter is equipped with high-end color management software that can

connect to PC to achieve more extension functions.

NH300 Colorimeter Specification

Model	NH300
Illuminating/Viewing Geometry	8/d
Measuring Aperture	Φ8mm
Detector	Silicon photoelectric diode
Color Space	CIEL*a*b*C*h* CIEL*a*b*
Color Difference Formula	△E*ab △L*a*b △E*C*h
Light Source	D65
Light Source Device	LED blue light excitation
Errors Between Each Equipment	≤0.40ΔE*ab
Storage	100pcs standards 20000pcs samples
Repeatability	Standard deviation within ΔE*ab 0.07 Average of 30 measurements of standard white plate
Weight	500g
Dimension	205×70×100 mm
Power source	Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life	5 years, more than 1.6 million measurements
Charging Time	2 hours (first time 8 hours--100% electricity)
Measurement Times Before Recharging	More than 3000 times
Operating Temperature/Humidity Range	-10~40℃, relative humidity 0~85% with no condensation
Data Interface	USB
Extended Aperture (optional)	-
Printer (optional)	Miniature thermal printer
